FY-SIEVE型聚氨酯精细筛网特征及优势

● 开孔率高达32%，筛分效率高，处理能力大。

● 筛网采用整体成型技术一次成型，采用纤维增强，不会出现整体开裂现象，提高筛网的抗张强度及使用寿命。

● 筛孔采用锥孔设计，有利于物料通过，不易堵孔。

主要技术参数

Main Technical Data

整体尺寸：1044*702mm

开孔率：32%~42%

最小孔径：0.075mm

使用寿命：6个月以上

可供应孔径：

0.075mm, 0.1mm, 0.12mm, 0.15mm,

0.18mm, 0.23mm,0.32mm,0.43mm,

0.5mm, 0.6mm, 0.7mm, 0.85mm, 1.0mm

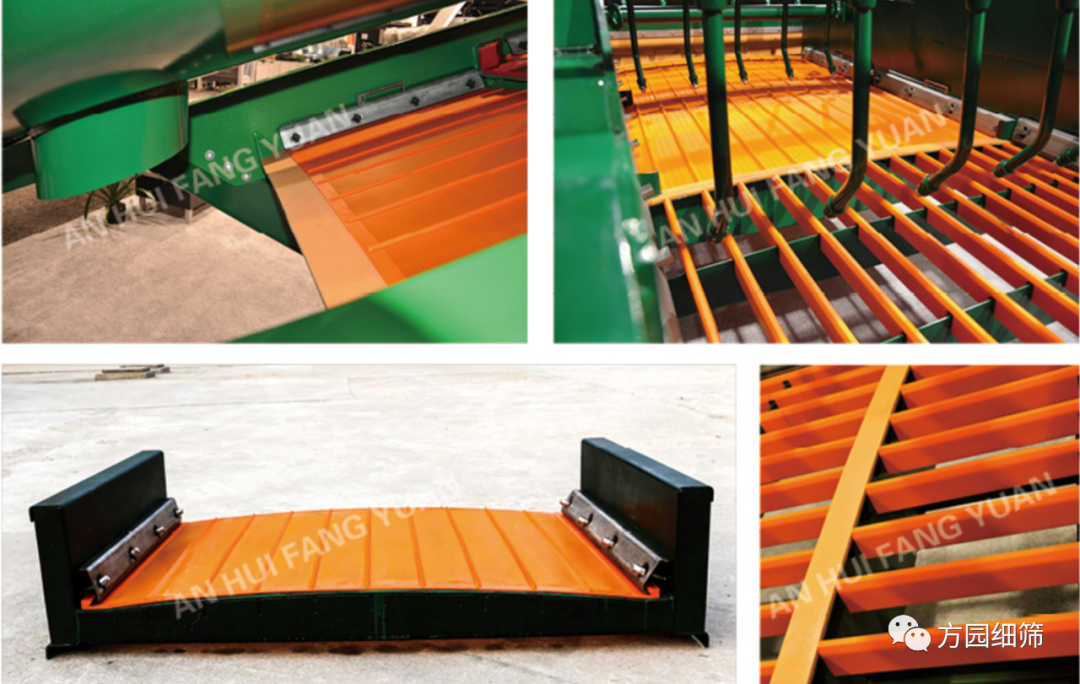

FY-SIEVE Polyurethane Fine Screen

features&Advantages

● Superior capacity and performance with high open area of over 32%.

● The fine screen sieve is manufactured as a whole with one-forming processing, reinforced with fiber, the tensile strength and useful life are improved, as a result, the craze is been avoided.

● Sieve pore is made as a taper hole, in this way, the material is easier to get through, the blinding is reduced in large degree.

Technical Data

Figure size: 1044*702mm

Open area rate: 32%~42%

Minimum aperture: 0.075mm

Using life:  more than 6months

Available apertures：

0.075mm, 0.1mm, 0.12mm, 0.15mm,

0.18mm, 0.23mm, 0.32mm,0.43mm,

0.5mm, 0.6mm, 0.7mm, 0.85mm, 1.0mm

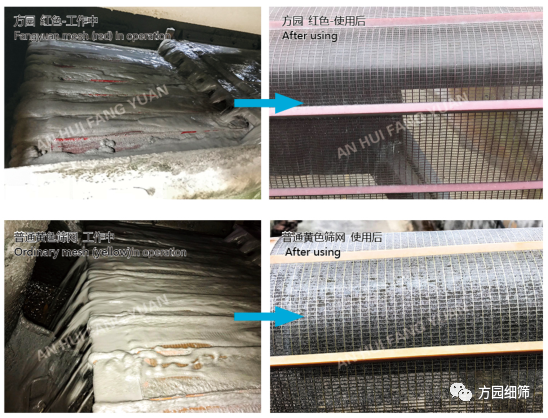

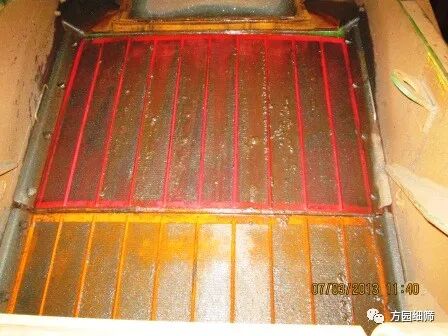

方园筛网再巴西铁矿，与美国筛网对比测试使用寿命和筛分效率

Test the using life and separation efficiency rate between Fangyuan and American screen panels.

筛网对比

Comparasion

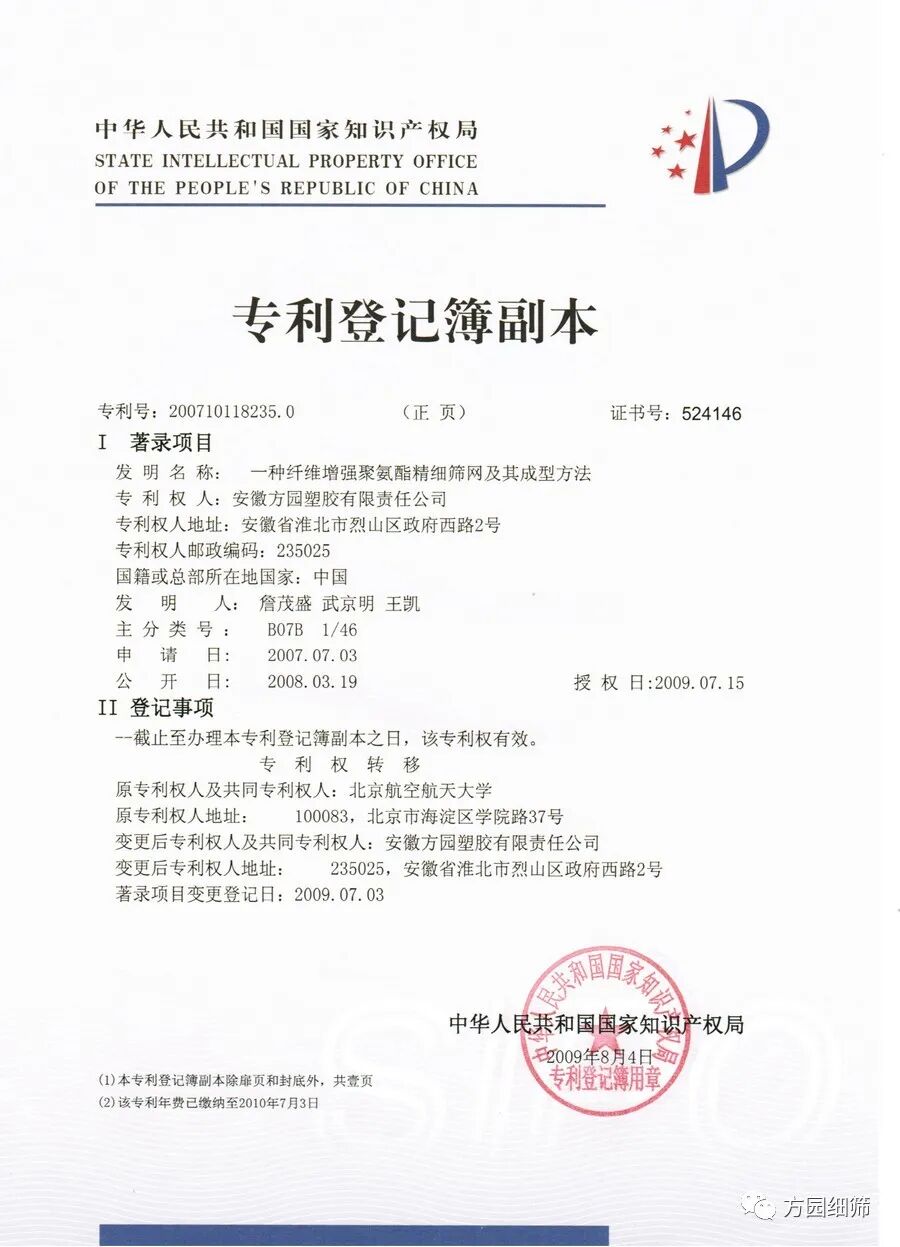

成型方法专利

Patent

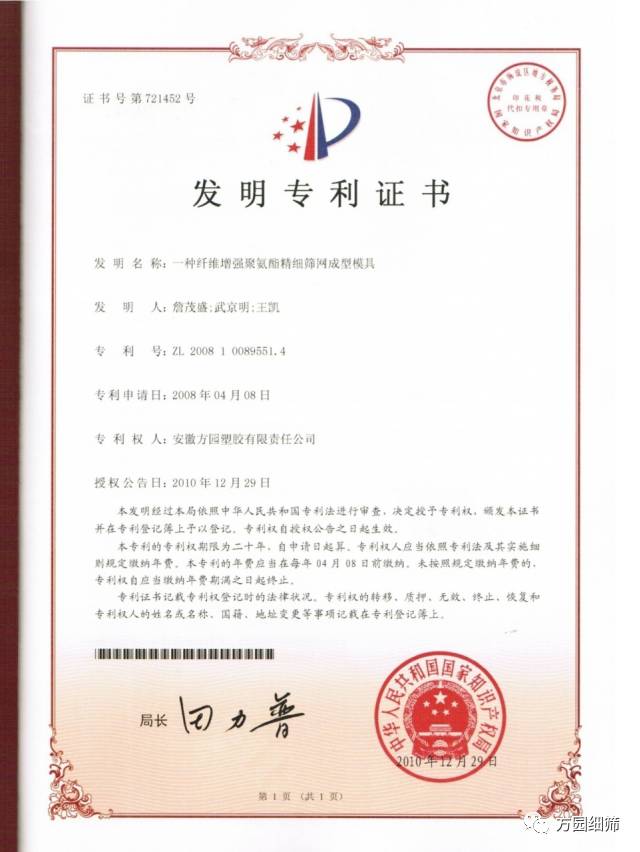

成型模具专利

Patent

1

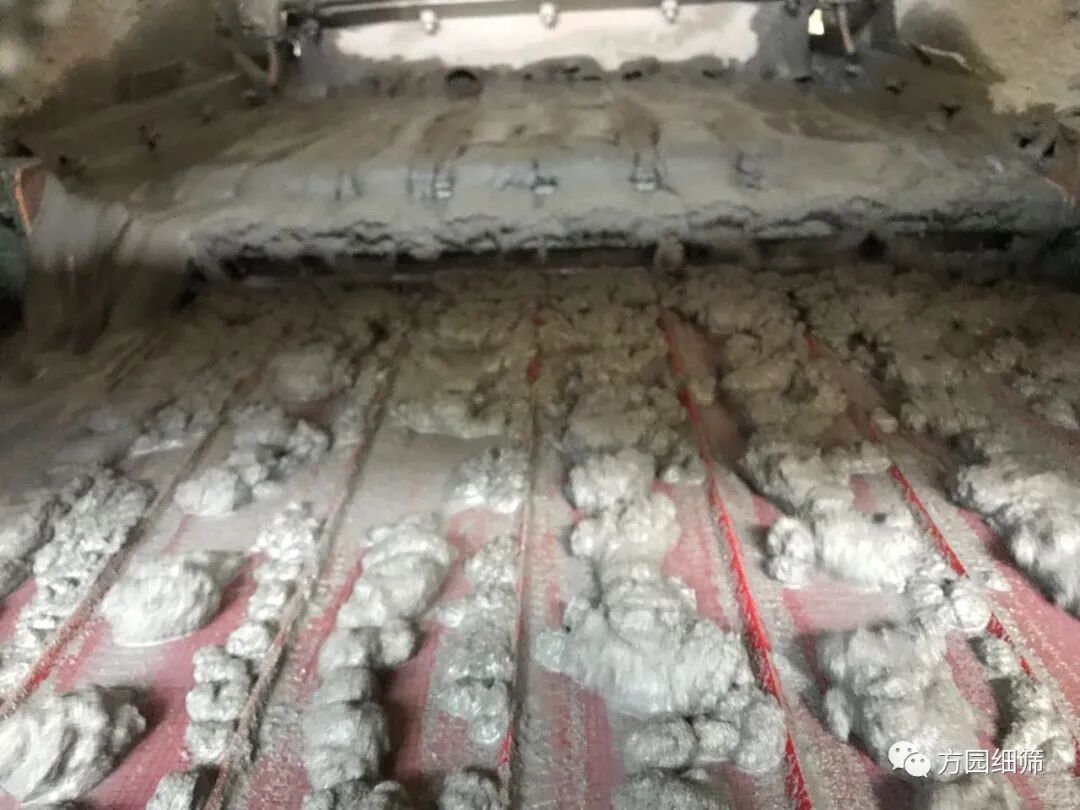

金属选矿应用

metal Mineral Separation

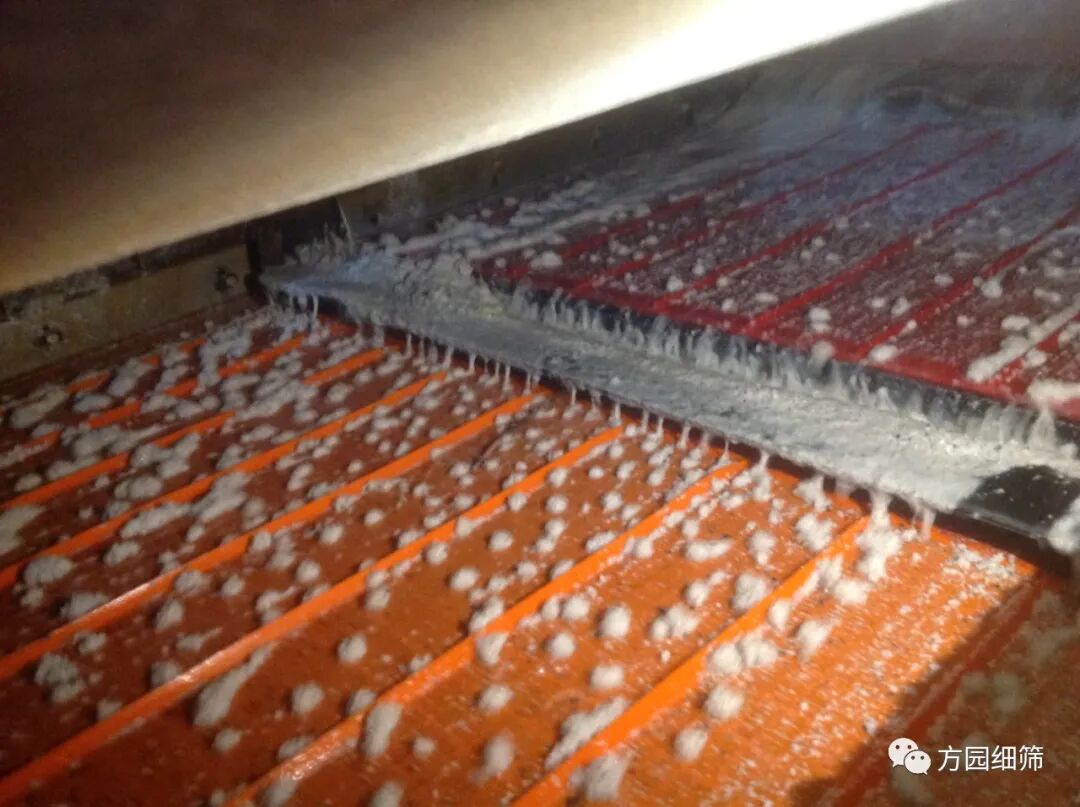

钽泥矿应用

Tantalum-niobium ores Application

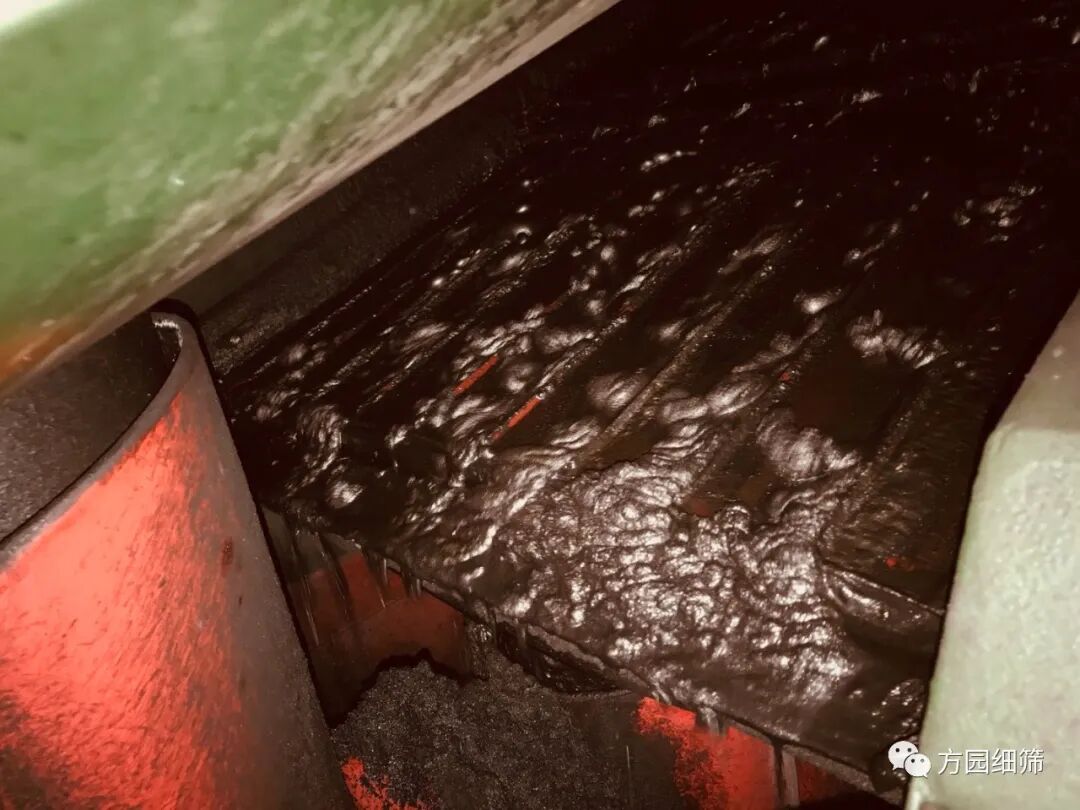

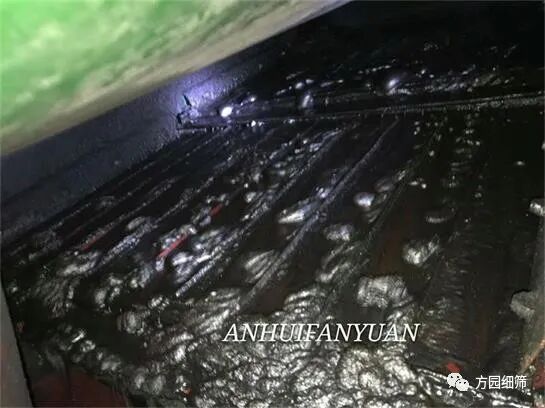

选煤应用现场

Coal-preparation Application
